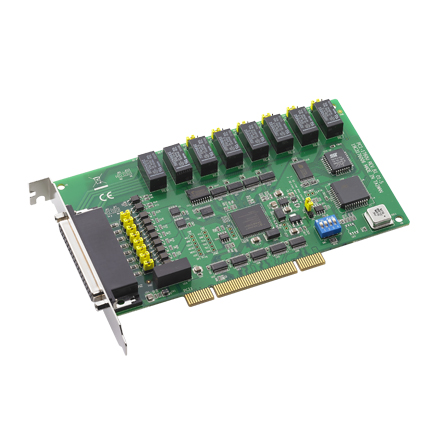

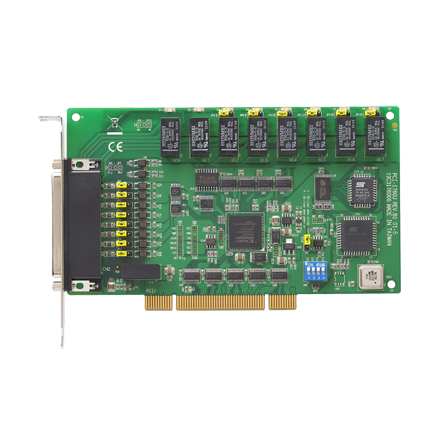

8-ch Relay and 8-ch Isolated Digital Input Universal PCI Card with 8-ch Counter/Timer

• Universal PCI card, for 3.3 V and 5 V PCI slot
• 8 opto-isolated digital input channels
• 8 relay actuator output channels
• 2 opto-isolated PWM outputs
• LED indicators to show activated relays
• Jumper selectable dry contact/wet contact input signals
• Up event counters for DI
• Programmable digital filter function for DI
• Pattern match interrupt function for DI
• "Change of state" interrupt function for DI
• Universal PCI and BoardID switch
