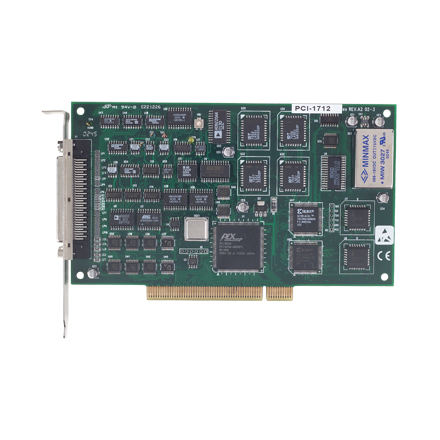

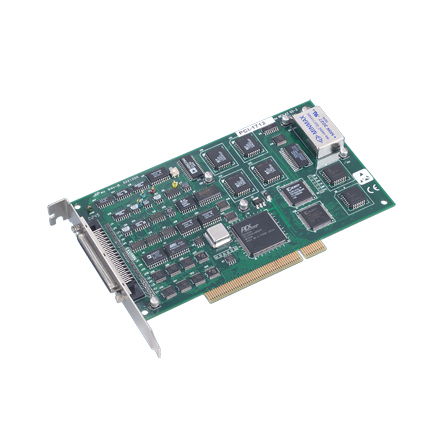

1 MS/s, 12-bit, 16-ch PCI Multifunction Card w/o AO

• 16 single-ended or 8 differential or a combination of analog inputs
• 12-bit A/D converter, with up to 1 MHz sampling rate
• Programmable gain
• Automatic channel/gain scanning
• Onboard FIFO memory (AI: 1,024 samples AO: 32,768 samples)
• 16-ch digital input and 16-ch digital output
• Three 16-bit programmable multifunction counter/timers on 10 MHz
• Auto-calibration (AI/AO)
• PCI-Bus mastering data transfer
• Pre-, post-, about- and delay-trigger data acquisition modes for analog input channels
• Flexible triggering and clocking capabilities.
